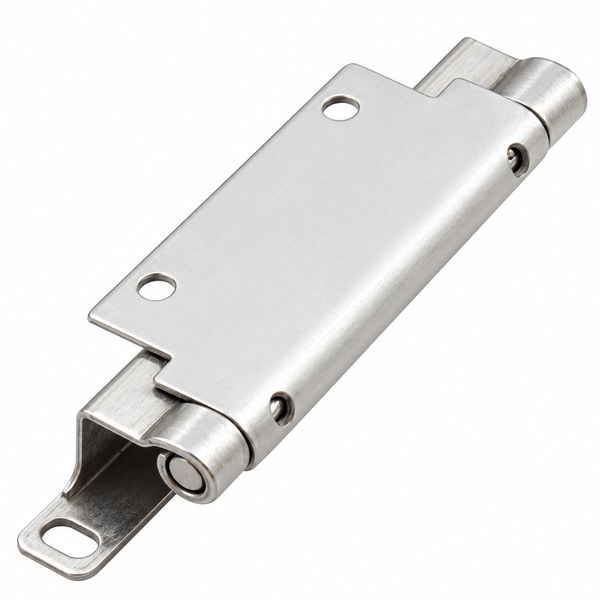

Material: Stainless Steel 304 or Steel zinc plated.
• Maximum opening angle: 120°
• It is recommended to use M5 screws (screws not provided).
• Radial load: 260N
• Axial load: 450N

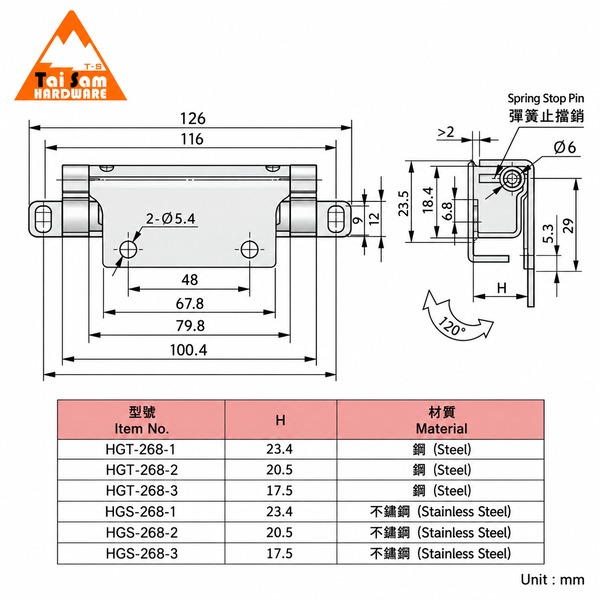

Removable hinges(H) are divided into 3 heights, which can be selected and applied according to the door panel bending height.
• The left and right door panels can be shared.
